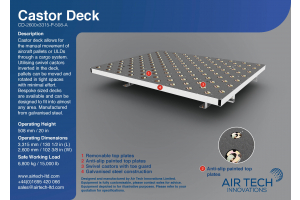

Castor Deck - Internal (508mm)
Description:

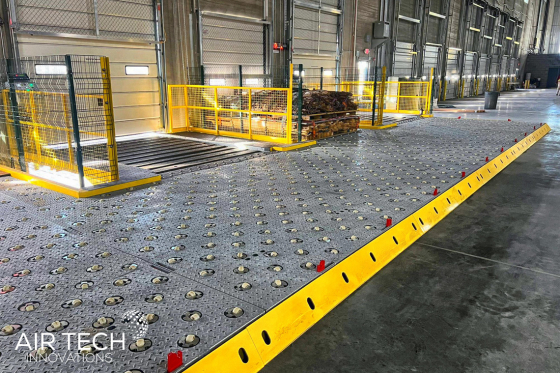

Castor deck allows for the manual movement of aircraft pallets or ULDs through a cargo system.
Utilising swivel castors inverted in the deck, pallets can be moved and rotated in tight spaces with minimal effort.
Bespoke sized decks are available and can be designed to fit into almost any area. Manufactured from galvanised steel.
Features:
- Removable top plates
- Durbar top plates
- Swivel castors with toe guard
- Galvanised steel construction
Operating Height:
508 mm
Dimensions:
3,315 mm (L)
2,600 mm (W)
Safe Working Load:
6,800kg
If non-standard dimensions are required, please contact our sales department and one of our sales engineers will assist you.
- Weighing Station complete with Load Cells and Digital Display
- Lift-Up Pallet Stops 65 mm wide x 20 mm thick
- Protection Barrier
- Litter Skirts
