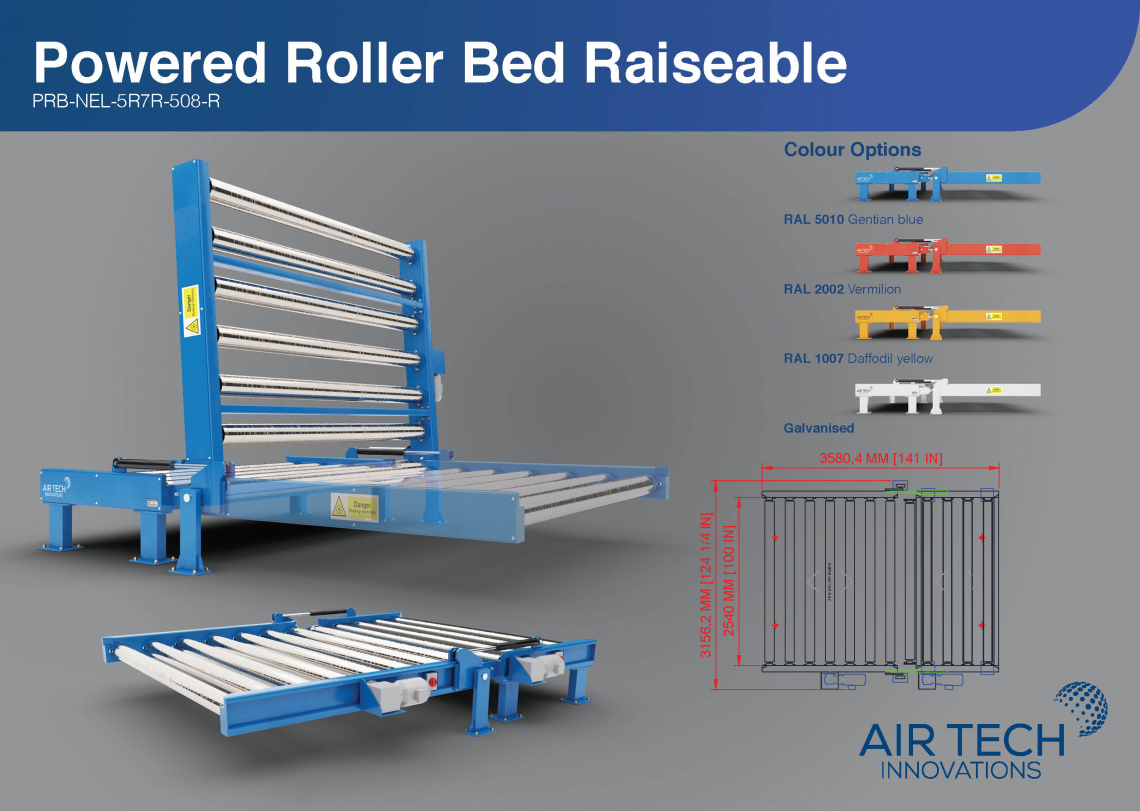

Powered Roller Bed NEL 5-7 Roller Raisable @ 508
Description:
Designed to move aircraft pallets through a cargo system, powered roller beds are the transport links between handling equipment. The raiseable version shown, features a section that is raised by hydraulic rams fitted to each side of the frame to create a gate section or additional room around a build station. Available painted or galvanised.
Features:
- Fully guarded drive components
- Walkover infill
- Fixed supports
- 3PH motor-gearbox drive unit
- Hydraulic raise and lower
- Photocell sensors (automation)
- Roller 133 mm diameter, 5 mm wall
- Pivot
- Painted and galvanised options
Operating Height:
508mm
Dimensions:
3,580 mm (L)
2,540 mm (W)
Safe Working Load:
6,800 kg
